Central Vacuum Dual Motor Circuit Board 18 Amp 240 Volt Control Module Replaces 236LX

Dual Motor Central Vacuum Circuit Board – 18 Amp 240 Volt

This Dual Motor Circuit Board Control Module is designed for select 240-volt central vacuum systems running dual motors. Rated for 18 amps, this replacement board includes all essential control components for reliable vacuum operation.

Specifications:

• Voltage: 240 Volt (Board may be labeled 120V on back)
• Amperage: 18 Amp
• Dual motor configuration
• Height: 2" from board to top of reset button

Includes:

• Relay
• Transformer
• Mini circuit breaker
• Ground connection
• Two pairs of low-voltage leads
• External mounting nuts for reset button and low-voltage stems

Installation Notes:

• Reset button and low-voltage stems are threaded and mount through the vacuum’s exterior housing
• Quarter-inch female spade terminals are NOT included

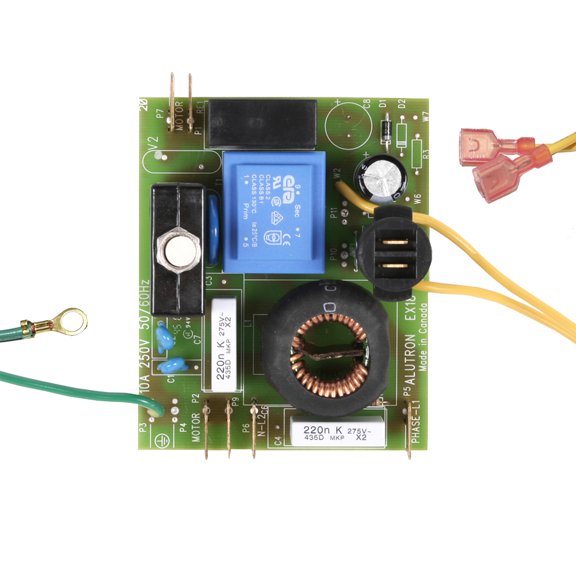

• Click product photo to print for wire placement reference

Replaces older part number: 236LX

Important: This circuit board does NOT work with all vacuum brands or models. Please verify compatibility before ordering. Refer to brand-specific Q&A or consult a professional technician if unsure.

Restore proper power distribution and control to your dual motor central vacuum system with this 18 amp 240V replacement board.
