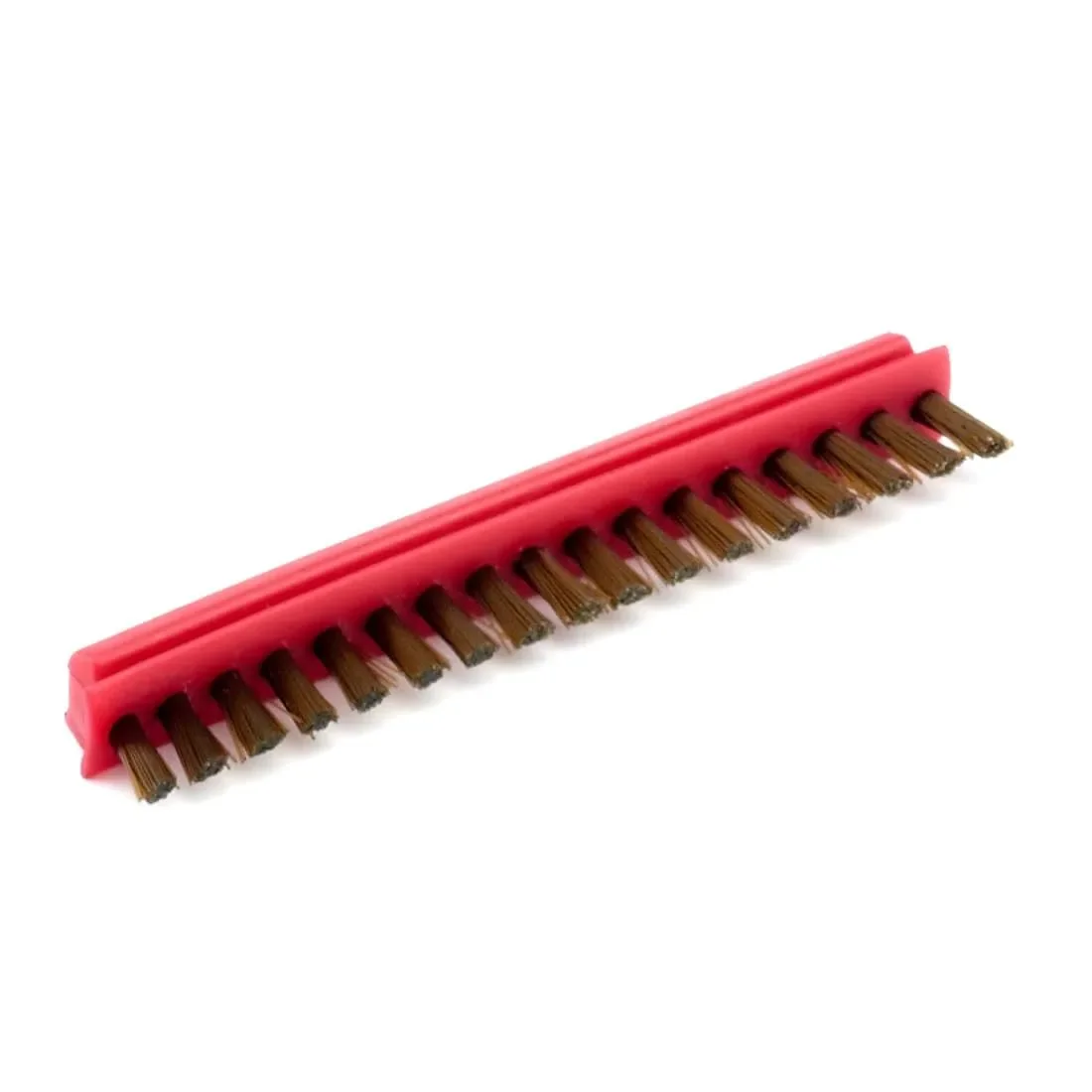

Riccar B013-1000 Short Nylon Standard Brush Strip for R10/R17 Metal Agitators

Riccar B013-1000 Short Nylon Standard Brush Strip for R10/R17 Metal Agitators

The Riccar / Simplicity / CleanMax B013-1000 Short Nylon Brush Strip is a replacement brush strip for select ultra-lightweight upright vacuums with compatible metal agitator brush rolls. This short nylon brush strip is the standard brush strip option for compatible Riccar R10, R17, Simplicity, CleanMax, and related ULW metal agitator applications.

Replacing worn brush strips can help restore carpet agitation, floor contact, and debris pickup without replacing the complete metal brush roll when the agitator itself is still in good condition. This brush strip is commonly referenced for RSL5, F3700, ZM600, and ULW metal agitator applications.

Product Features

• Replacement short nylon brush strip
• SKU / part number: B013-1000
• UPC: 098612625049
• Designed for select Riccar R10 and R17 upright vacuums
• Used with compatible metal / steel agitator brush rolls
• Short brush strip design
• Nylon bristles
• Standard brush strip option for compatible metal agitators
• Commonly referenced for RSL5, F3700, ZM600, and ULW applications
• Replacement for worn, flattened, missing, or damaged brush strips
• Sold individually

Compatible Models May Include

• Riccar R10S
• Riccar R10D
• Riccar R10P
• Riccar R10SAND
• Riccar R17
• Simplicity Freedom F3700
• CleanMax ZM600
• Select Riccar RSL5 models with compatible metal agitators
• Select Riccar, Simplicity, and CleanMax ultra-lightweight upright vacuums using compatible metal agitator brush rolls

Important Quantity Note

This listing is for one short brush strip. Some metal roller brush assemblies use multiple brush strips, and a complete brush roll service may require both short and long brush strips depending on the agitator design. Please compare your original brush roll before ordering.

Brush Strip Options

• Natural Brush Strip - softest option for compatible metal agitators
• White Crimped Brush Strip - softer option for compatible metal agitators
• Nylon Brush Strip - standard option for compatible metal agitators

Common Reasons for Replacement

• Brush strip bristles are worn down
• Bristles are flattened, missing, or uneven
• Vacuum is not grooming carpet properly
• Carpet pickup performance has dropped
• Metal agitator is still usable but the brush strip is worn
• Vacuum is being serviced or tuned up

Product Details

Fitment Note

Please verify your vacuum model number, original brush strip length, and metal agitator style before ordering. Riccar, Simplicity, and CleanMax ultra-lightweight vacuums may use different brush strips depending on the agitator design and production version. This listing is for B013-1000, the short nylon standard brush strip for compatible ULW metal agitators.

Installation Note

Always unplug the vacuum before servicing. Inspect the metal agitator, brush strip channels, long brush strips, end caps, bearings, belt, baseplate, and nozzle area while replacing brush strips. If the roller brush is bent, cracked, noisy, or difficult to spin, the complete agitator assembly may need to be replaced.
