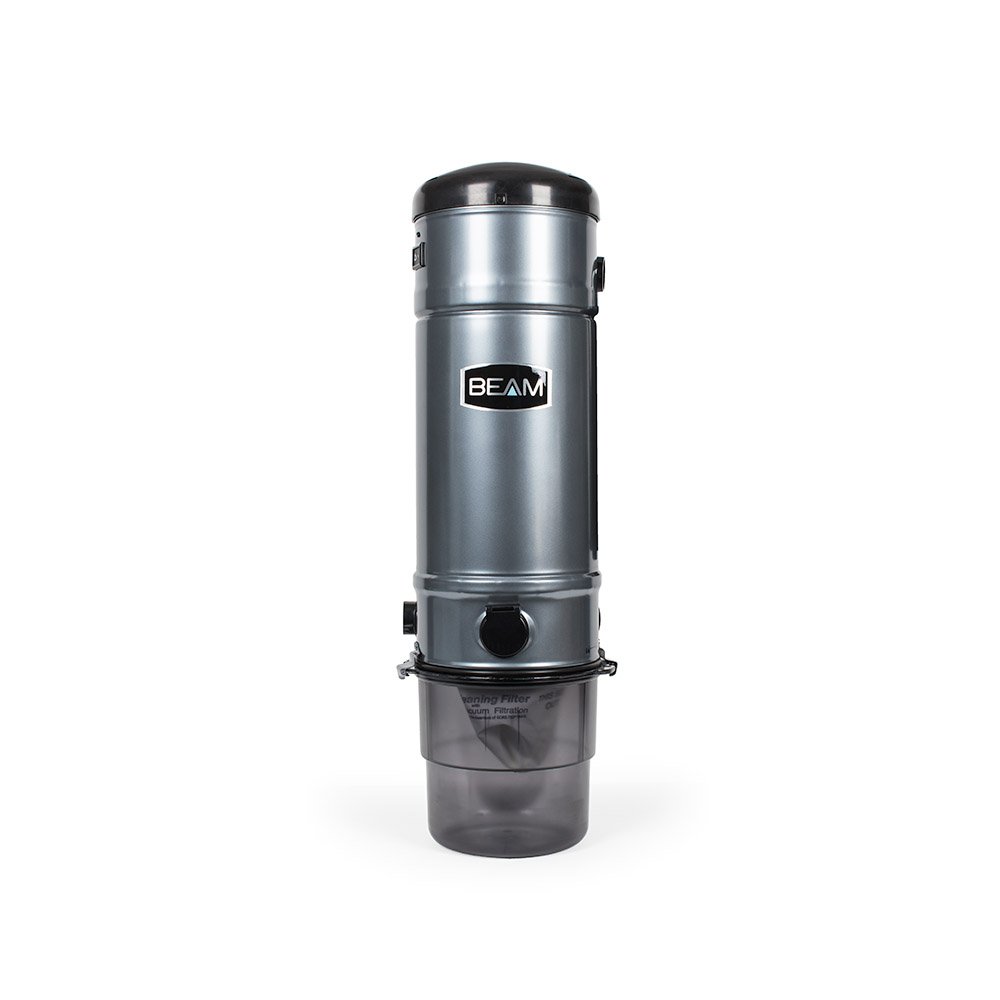

BEAM SC375 Serenity QS Series

Beam by Electrolux SC375A Power Unit Parts

Specifications:

• Recommended for homes up to 7,000 sq. ft.
• Suction Power (water lift)- 140"
• Air Flow (CFM) - 125
• Air Watts - 600
• Maximum Amps - 14.5
• Voltage - 120
• Built-In Utility Inlet: Yes
• Dirt Receptacle Capacity - 4 Gallons
• Anti-Vibration Mounting System
• Filter: Permanent, self-cleaning filter
• Size: 11" diameter 42" high

Features:

• ATLIS Intake Technology
• Self-Cleaning filter with Gore-Tex
• Sound-off muffler
• Translucent bucket
• Anti-vibration package

Look at the parts tab above to find your:

• Motor

• Relay

• Filters and more

Service Parts Listing: 1 - 115078 - Canopy-BLK 11 inch Slotted Plstc 2 - 145140 - Foam for Lid 3 - 115031 - Lid-Alloy 11 inch w/Mesh & Foam 4 - 145138 - Thermal Seal 5 - 140431 - Motor:(119992-00) 6 - 100629 - CtrlMod:ECS 120V High w/Kit 7 - 100346 - Cord 8 - 115077 - SUI Cover 9 - 100601 - Control Module SUI Board 10 - 100602 - Wire Harness ECS/SUI 11 - 105209 - Intake Kit: BLK ATLIS 12 - 110346 - Filter Bag 13 - 105148 - Valve: BLK ATLIS Plain Utility 14 - 195001 - Receptacle Gasket-Sm Dia 15 - 120317 - DrtRecpt: 15L Plstc-Smoke Tint 16 - 145137 - Motor Gasket 17 - 145319 - Exhaust Extension 3.0Lg./1.9ID 18 - 145314 - Exhaust Elbow BLK 19 - 030185 - Mfflr-BLK Sound Off 20 - 125524 - UpCyl - SC375A Mdnght Blu Mtlc 21 - 145330 - Wall Mounting Bracket 22 - 145506 - Anti Vibration 23 - 110517 - Filter Exhaust 3X5 99 - 135050 - Brushes:Motor 33490-7(119992-00)
